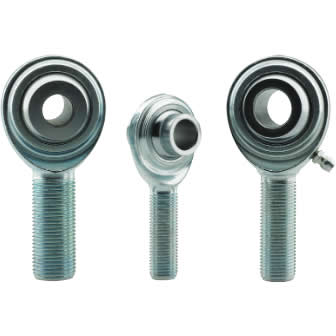

- 2-PIECE CONSTRUCTION
- PTFE LINER AVAILABLE
- STUDS AVAILABLE
- OPTIONAL LUBRICATION FITTING AVAILABLE
- SPECIAL BORE SIZES
- CONSULT FK ENGINEERING DEPARTMENT
| Right Hand Part # | Left Hand Part # | B DIA | D DIA | W WIDTH | T WIDTH | BALL DIA | A LENGTH | N THREAD | C LENGTH | ULT STATIC RADIAL LOAD | APPROX WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| +.0025 -.0005 | +.010 -.010 | +.005 -.005 | REF. | REF. | +.015 -.015 | UNF 3A | +.062 -.031 | (lbs) | (lbs) | ||
| CM4-3 | CML4-3 | .1900 | .750 | .375 | .250 | .500 | 1.562 | 1/4-28 | 1.000 | 2,225 | .04 |
| CM5-4 | CML5-4 | .2500 | .875 | .437 | .312 | .625 | 1.875 | 5/16-24 | 1.250 | 3,600 | .07 |
| CM6-5 | CML6-5 | .3125 | 1.000 | .500 | .359 | .719 | 1.938 | 3/8-24 | 1.250 | 5,100 | .11 |
| HCM6 | HCML6 | .3750 | 1.000 | .750 | .359 | .719 | 1.938 | 3/8-24 | 1.250 | 5,100 | .11 |
| CM8-6 | CML8-6 | .3750 | 1.312 | .625 | .453 | .937 | 2.438 | 1/2-20 | 1.500 | 8,386 | .25 |
| HCM8 | HCML8 | .5000 | 1.312 | 1.156 | .453 | .937 | 2.438 | 1/2-20 | 1.500 | 8,386 | .26 |
| CM10-8 | CML10-8 | .5000 | 1.500 | .750 | .484 | 1.125 | 2.625 | 5/8-18 | 1,625 | 9,813 | .38 |
| CM12-8 | CML12-8 | .5000 | 1.750 | .875 | .593 | 1.312 | 2.875 | 3/4-16 | 1.750 | 14,290 | .63 |
| CM12-10 | CML12-10 | .6250 | 1.750 | .875 | .593 | 1.312 | 2.875 | 3/4-16 | 1.750 | 14,290 | .60 |
| CM10-12 | CML10-12 | .6250 | 1.750 | .875 | .593 | 1.312 | 2.875 | 5/8-18 | 1.750 | 11,184 | .53 |
| HCM12 | HCML12 | .7500 | 1.750 | 1.125 | .593 | 1.312 | 2.875 | 3/4-16 | 1.750 | 14,290 | .58 |
| CM12-757 | CML12-757 | .7570 | 1.750 | .875 | .593 | 1.312 | 2.875 | 3/4-16 | 1.750 | 14,290 | .56 |
