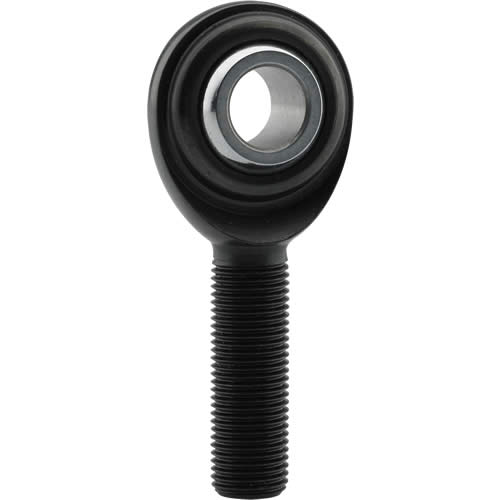

• 2-PIECE CONSTRUCTION
  • PTFE LINER AVAILABLE
  • STUDS AVAILABLE
  • OPTIONAL LUBRICATION FITTING AVAILABLE
  • MALE ROD END LOAD RATINGS BASED ON NO LUBRICATION FITTING
  • FOR LOAD RATINGS WITH LUBRICATOR, CONTACT FK ENGINEERING
  • BALL
    • 52100 STEEL
    • Rc 56 MIN
    • HARD CHROME PLATED
  • BODY
    • ALLOY STEEL
    • HEAT TREATED
Right Hand
Part Number
Left Hand
Part Number
B
DIA
D
DIA
W
WTH
T
WTH
Ball
DIA
A
LGTH
N
THD
C
LGTH
a Mis
Angle
ULT Static
Radial Load
ULT Static
Radial Load
Approx
Weight
+.0025
-.0005
REF+.005
-.005
REFREF+.015
-.015
UNF
3A
+.062
-.031
REFMetal To
Metal
(lbs)
PTFE
Lined
(lbs)
(lbs)
CMX8CMXL8.50001.312.625.453.9372.4381/2-201.5002017,00014,500.24
CMX10-8CMXL10-8.50001.500.750.4841.1252.6255/8-181.6252618,00015,200.30
CMX10CMXL10.62501.500.750.4841.1252.6255/8-181.6252618,00015,200.36
CMX12-8CMXL12-8.50001.750.875.5931.3122.8753/4-161.7502425,00021,400.57
CMX12-10CMXL12-10.62501.750.875.5931.3122.8753/4-161.7502425,00021,400.57
CMX12CMXL12.75001.750.875.5931.3122.8753/4-161.7502425,00021,400.57

  • 2-PIECE CONSTRUCTION
  • PTFE LINER AVAILABLE
  • STUDS AVAILABLE
  • OPTIONAL LUBRICATION FITTING AVAILABLE
  • BALL
    • 52100 STEEL
    • Rc 56 MIN
    • HARD CHROME PLATED
  • BODY
    • ALLOY STEEL
    • HEAT TREATED
Right Hand
Part Number
Left Hand
Part Number
B
DIA
D
DIA
W
WTH
T
WTH
Ball
DIA
A
LGTH
N
THD
C
LGTH
E
DIA
F
Flat
a Mis
Angle
ULT Static
Radial Load
ULT Static
Radial Load
Approx
Weight
+.0025
-.0005
REF+.005
-.005
REFREF+.015
-.015
UNF
2B
+.062
-.031
+.010
-.010
+.010
-.010
REFMetal To
Metal
(lbs)
PTFE
Lined
(lbs)
(lbs)
CFX8CFXL8.50001.312.625.453.9372.1251/2-201.062.875.7502017,00014,500.24
CFX10CFXL10.62501.500.750.4841.1252.5005/8-181.3751.000.8752618,00015,200.36
CFX12CFXL12.75001.750.875.5931.3122.8753/4-161.5621.1251.0002425,00021,400.57
