• 2-PIECE CONSTRUCTION
  • PTFE LINER AVAILABLE
  • STUDS AVAILABLE
  • OPTIONAL LUBRICATION FITTING AVAILABLE
  • MALE ROD END LOAD RATINGS BASED ON NO LUBRICATION FITTING
  • FOR LOAD RATINGS WITH LUBRICATOR, CONTACT FK ENGINEERING
  • BALL
    • 52100 STEEL
    • Rc 56 MIN
    • HARD CHROME PLATED
  • BODY
    • LOW CARBON STEEL
    • ZINC PLATED
    • CHROMATE TREATED
Right Hand
Part Number
Left Hand
Part Number
B
DIA
D
DIA
W
WTH
T
WTH
Ball
DIA
A
LGTH
N
THD
C
LGTH
a Mis
Angle
ULT Static
Radial Load
ULT Static
Radial Load
Approx
Weight
+.0025
-.0005
REF+.005
-.005
REFREF+.015
-.015
UNF
3A
+.062
-.031
REFMetal To
Metal
(lbs)
PTFE
Lined
(lbs)
(lbs)
CM3*CML3*.1900.625.312.234.4371.25010-32.750201,210902.03
CM4*CML4*.2500.750.375.250.5001.5621/4-281.000272,2251,809.04
CM5*CML5*.3125.875.437.312.6251.8755/16-241.250223,6002,984.07
CM6CML6.37501.000.500.359.7191.9383/8-241.250225,1004,244.11
CM7CML7.43751.125.562.406.8122.1257/16-201.375216,4025,312.15
CM8CML8.50001.312.625.453.9372.4381/2-201.500208,3867,211.24
CM10CML10.62501.500.750.4841.1252.6255/8-181,625269,8138,403.36
CM12CML12.75001.750.875.5931.3122.8753/4-161.7502414,29012,321.57

* Grease Fittings Are Not Supplied On These Sizes

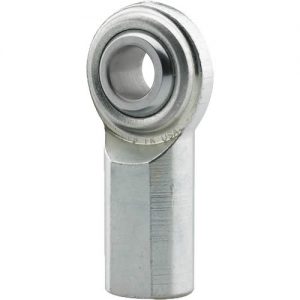

  • 2-PIECE CONSTRUCTION
  • PTFE LINER AVAILABLE
  • STUDS AVAILABLE
  • OPTIONAL LUBRICATION FITTING AVAILABLE
  • BALL
    • 52100 STEEL
    • Rc 56 MIN
    • HARD CHROME PLATED
  • BODY
    • LOW CARBON STEEL
    • ZINC PLATED
    • CHROMATE TREATED
Right Hand
Part Number
Left Hand
Part Number
B
DIA
D
DIA
W
WTH
T
WTH
Ball
DIA
A
LGTH
N
THD
C
LGTH
E
DIA
F
Flat
a Mis
Angle
ULT Static
Radial Load
ULT Static
Radial Load
Approx
Weight
+.0025
-.0005
REF+.005
-.005
REFREF+.015
-.015
UNF
2B
+.062
-.031
+.010
-.010
+.010
-.010
REFMetal To
Metal
(lbs)
PTFE
Lined
(lbs)
(lbs)
CF3*CFL3*.1900.625.312.234.4371.06210-32.500.406.312202,1001,637.04
CF4-3N/A.2500.750.375.250.5001.31210-32.687.468.375273,250-.05
CF4CFL4.2500.750.375.250.5001.3121/4-28.687.468.375273,2502,612.05
CF5CFL5.3125.875.437.312.6251.3755/16-24.687.500.437223,9343,110.08
CF6CFL6.37501.000.500.359.7191.6253/8-24.812.687.562225,1004,206.13
CF7CFL7.43751.125.562.406.8121.8127/16-20.937.750.625216,4025,384.18
CF8CFL8.50001.312.625.453.9372.1251/2-201.062.875.750209,1007,826.29
CF10CFL10.62501.500.750.4841.1252.5005/8-181.3751.000.875269,8008,343.43
CF12CFL12.75001.750.875.5931.3122.8753/4-161.5621.1251.0002414,25012,342.65

* Grease Fittings Are Not Supplied On These Sizes
